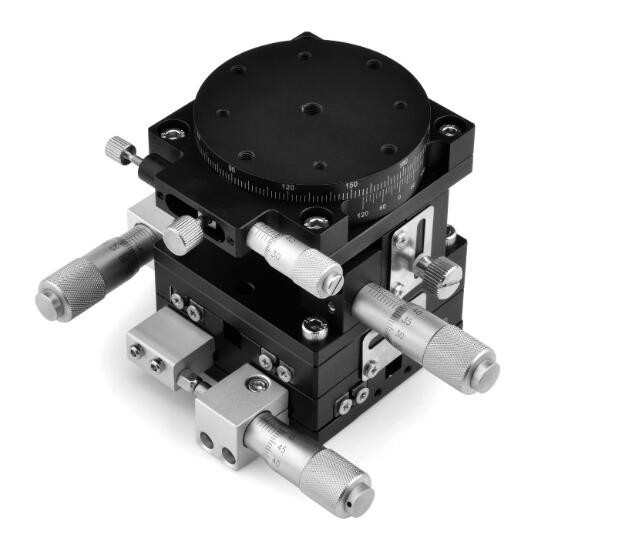

Precision stage of Xyzr four-axis displacement platform Guide Rail
Module
XYZR axis in four directions
Direction of movement: XYZR axis four degrees of freedom material:
aluminum alloy
Table size: 60mmX60mm itinerary: soil 6. 5mm
Load: 29.4N (3kgf)
XY axis: 0.01mm
Minimum scale: 0.01mm
Precision: 0.03mm
Parallelism: 0.02mm
Weight: 0.91KG
Stroke R axis: 360 rough tuning 5 °fine tuning
FAQ
1. What do you do?
We are a professional manufacturer with over 15 years’ export
experience for designing and producing vehicle machinery parts.
Focus on saving cost, function approach, production feasibility for
your projects.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new
clients are expected to pay the courier cost, and the charge will
be deducted from the payment for formal order.
3. Can you make CNC machining parts according to our drawing?
Yes, we can make machining parts according to your drawing, 2D
drawing, or
3D cad model. If the 3D cad model can be supplied, the development
of production can be more efficient. But without 3D, based on 2D
drawing we can still make the samples properly
approved.
4. Can you make CNC machining parts based on our samples?
Yes, we can make measurement based on your samples to make drawings
for machining parts making.
5. Is it possible to know how are my products going on without
visiting your company?
We will offer a detailed production schedule and send weekly
reports with pictures or videos which show the machining progress.
6. How about the lead time?
Generally, 1-2 weeks for samples, 3-4 weeks for mass production.
7. How do you control the quality?
(1)Material inspection--Check the material surface and roughly
dimension.
(2)Production first inspection--To ensure the critical dimension in
mass production.
(3)Sampling inspection--Check the quality before sending to the
warehouse.
(4)Pre-shipment inspection--100% insp
8.What is your payment term?
Mold: 50% prepaid, balance after sample approval.
Goods: 50% prepaid, balance T/T before shipment.
